Quick Details
- Place of Origin:China(Mainland), Henan
- Brand Name:Sanhe
- Model Number:House Wire
- MOQ:3 kilometer
- Certificate:ISO9001
- Voltage:450/750V
- Application:Construction
- Standard:IEC
- Insulation Material:PVC
- Package:Plastic coil, wooden drum or your requirement
- Port:Qingdao /Shanghai / Tianjin
- Conductor Material:Copper
Overview
Electrical Copper building Wiring material for House Wire
1.Application
It Applicable in the AC rated voltage 450 / 750V and below power, house hold appliances, instrumentation and
telecommunications equipment lines.
2.Performance

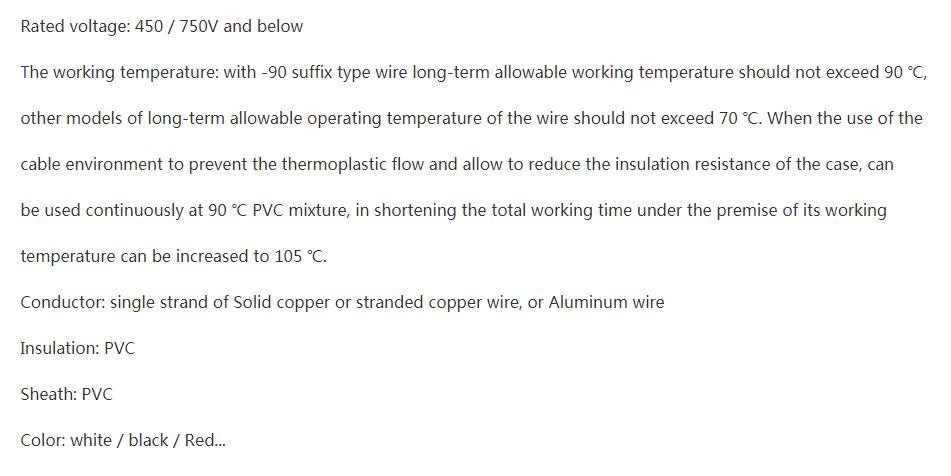

Rated voltage: 450 / 750V and below
The working temperature: with -90 suffix type wire long-term allowable working temperature should not exceed 90 ℃,
other models of long-term allowable operating temperature of the wire should not exceed 70 ℃. When the use of the
cable environment to prevent the thermoplastic flow and allow to reduce the insulation resistance of the case, can
be used continuously at 90 ℃ PVC mixture, in shortening the total working time under the premise of its working
temperature can be increased to 105 ℃.
Conductor: single strand of Solid copper or stranded copper wire, or Aluminum wire
Insulation: PVC
Sheath: PVC
Color: white / black / Red...

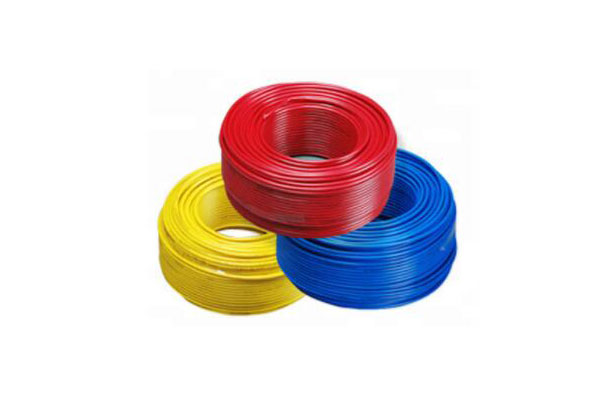

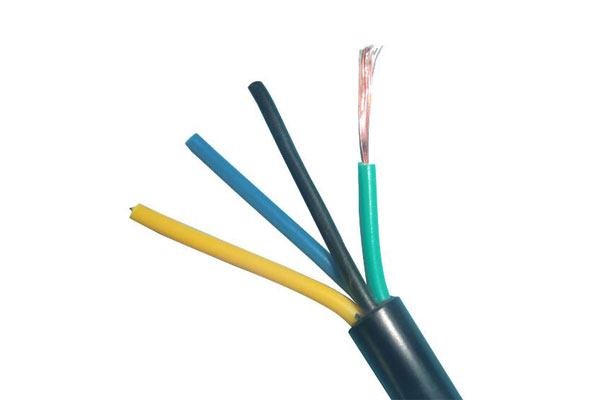

Product Photos
