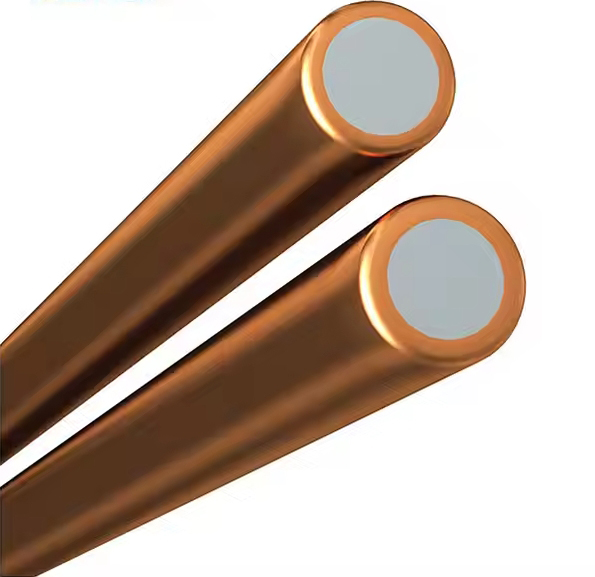

Copperclad Steel Wire

Copperclad Steel Wire is the ideal solution for grounding wire for power type applications. Composed of a steel core with coppercladding, the

steel wire gives the wire its strength and the consistent layer of copper provides electrical conductivity and resistance to corrosion.To manufacture

Copperclad Steel Wire, carbon steel (low, high strength and extra high strength) is bonded with a uniform layer of oxygen-free coppercladding to

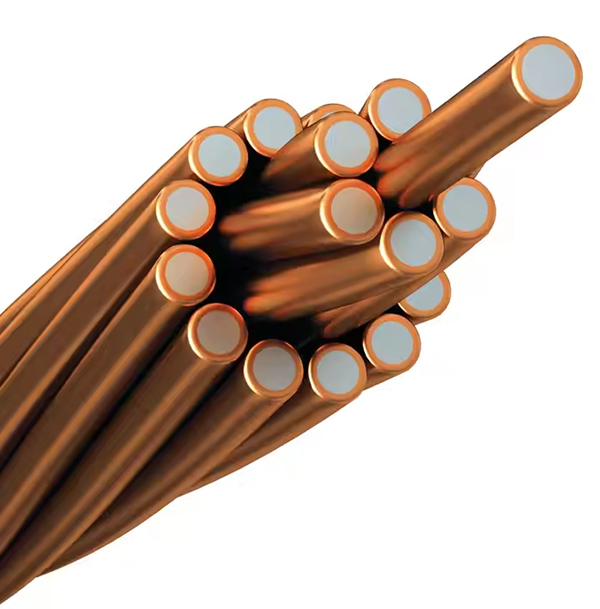

 achieve 30% and 40% IACS (International Annealed Copper Standard) conductivities. The material is available in a single wire, 3, 7 and 19 cable

strands with some sizes jacketed to give the wire a different appearance to copper.

Copperclad Steel Wire

Copperclad Steel Wire is the ideal solution for grounding wire for power type applications. Composed of a steel core with coppercladding, the steel

wire gives the wire its strength and the consistent layer of copper provides electrical conductivity and resistance to corrosion.

To manufacture Copperclad Steel Wire, carbon steel (low, high strength and extra high strength) is bonded with a uniform layer of oxygen-free

coppercladding to achieve 30% and 40% IACS (International Annealed Copper Standard) conductivities. The material is available in a single wire, 3,

7 and 19 cable strands with some sizes jacketed to give the wire a different appearance to copper.

Dead Soft Annealed Copperclad Steel Wire

Copperclad Steel Wire is a strong, non-rusting, efficient grounding conductor. It is composed of Coppercladding that is permanently bonded

to the central steel core of each wire. Copperclad provides the same conductivity and corrosion resistance as copper while maintaining the

high strength of steel. Dead Soft Annealed (DSA) Copperclad Steel Wire is very flexible for easy preparation and installation.

When compared to solid copper, Copperclad Steel Wire has faster impedance to ground for better protection of lines and equipment plus a

higher resistance to thermal expansion failures. It also reduces the fatigue damage caused by more than 10 times that of annealed solid copper.

Copperclad Steel Wire is an excellent solution for areas with high rates of copper theft as the amount of copper used in the bonding process is

minimal—6% to 10% depending on the conductivity. When Copperclad Steel Wire is used in place of copper, the grounding conductor is far less

likely to be stolen. This feature is important not only from an economic standpoint, but also from the standpoint of safety and reliability. Often,

the fact that a copper downlead has been removed is not evident until a surge current causes a failure in the system.
