ACSR of BS Standard ACSR Wolf Conductor

ACSR conductor is widely used in power transmission lines with various voltage levels, and also used in power lines across great rivers, heavy ice area, etc. with special geographical situation.

    Application: Overhead
    Voltage: High Voltage
    Conductor Material: Aluminum
    MOQ: 1kilometer
  • Quick Details

    Place of Origin:China henan
    Brand Name:Sanhe
    Model Number:ACSR of BS Standard
    MOQ:1kilometer
    Certificate:ISO9001
    Voltage:High Voltage
    Application:Overhead
    Standard:BS IEC ASTM DIN
    Insulation Material:none
    Package:Standard Wooden Drum
    Port:Qingdao /Shanghai / Tianjin
    Conductor Material:Aluminum

    Overview

    ACSR of BS Standard ACSR Wolf Conductor

    1.Application

    ACSR conductor is widely used in power transmission lines with various voltage levels, and also used in power lines across great rivers, heavy ice area, etc. with special geographical situation.

    2.Material

    Aluminum: 1350 series Aluminum,6201 Aluminum....

    Steel: Class A Steel Wire

    3.Standard

    BS215-2-70

    4.Code name

    ACSR Weasel , ACSR Rabbit, ACSR Horse, ACSR Dog, ACSR Wolf, ACSR Dingo, ACSR Lynx, ACSR Caracal, ACSR Zebra

    Code name Nominal Area Stranding&Wire Diameter Approximate Overall Diameter
    Aluminum Steel
    mm2 No. mm No. mm mm
    Gopher 25 6 2.36 1 2.36 7.08
    Weasel 30 6 2.59 1 2.59 7.77
    Ferret 40 6 3 1 3 9
    Rabbit 50 6 3.35 1 3.35 10.05
    Horse 70 12 2.79 7 2.79 13.95
    Dog 100 6 4.72 7 1.57 14.15
    Wolf 150 30 2.59 7 2.59 18.13
    Dingo 150 18 3.35 1 3.35 16.75
    Lynx 175 30 2.79 7 2.79 19.53
    Caracal 175 18 3.61 1 3.61 18.05
    Panther 200 30 3 7 3 21
    Jaguar 200 18 3.86 1 3.86 19.3
    Zebra 400 54 3.18 7 3.18 28.62

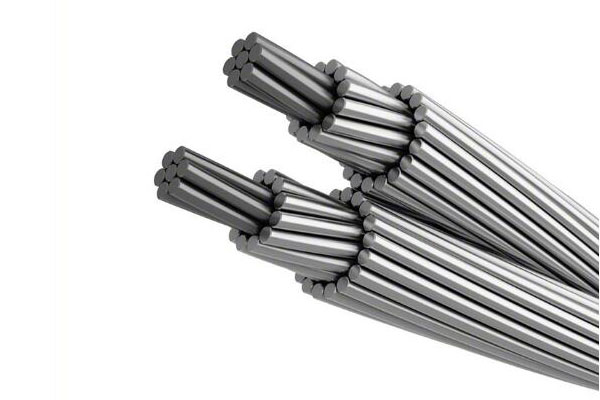

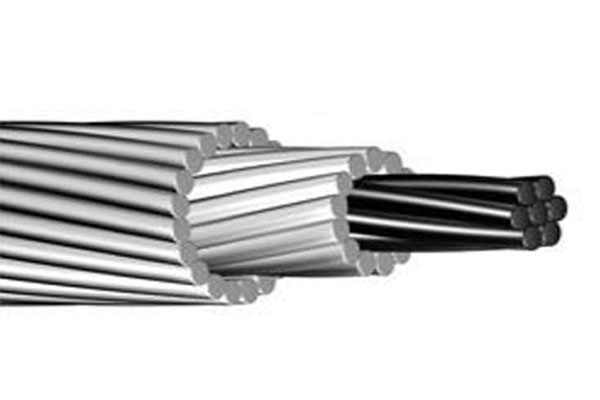

    Product Photos

    ACSR of BS Standard ACSR Wolf Conductor

    ACSR of BS Standard ACSR Wolf Conductor

    ACSR of BS Standard ACSR Wolf Conductor

  • ACSR of BS Standard ACSR Wolf Conductor parameter

  • Packing type:

    Wooden drum (fumigation) ,wooden-iron drum (fumigation) ,coil

    Cable length in each drum: 500m/1000m or as per actual cable length requirements.

    Package size:

    According to cable’s overall diameter or your requirements .

    in order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

    Loading Port:

    Qingdao,Shanghai or other ports as per your requests.

    Trade Terms:

    FOB/C&F/CIF quotation are all available

  • Quality

    1, There is a professional design engineer team, before manufacturing, all of the product drawing will be approved by CSBTS (State Bureau of Quality Technical Supervision), and then the cable could be produced only if qualified.

    2, To ensure the raw materials quality, all the copper and aluminium are special-used for cable with the Inspection Certificates. The raw material is inspected when entering factory, and only the qualified material could be put in storage and used for production.

    3, To ensure the product quality, there is a professional high level quality laboratory, most of the key technology will be checked by high precision instrument.
