NFC33-209 1 x 54.6 mm2 + 3 x 50 mm2 + 2 x 16 mm2 ABC wire cable

The overhead insulated cable accords with the standards of NFC-33-209, which primarily used for overhead service drop applications,such as:street lighting.outdoor lighting and temporary service for construction.

    Application: overhead/ underground/ power station
    Voltage: 0.6/1 KV
    Conductor Material: Aluminum
    MOQ: 1 kilometer
  • Quick Details

    Place of Origin:China(Mainland), Henan
    Brand Name:Sanhe
    Model Number:1 x 54.6 mm2 + 3 x 35 mm2 + 2 x 16 mm2
    MOQ:1 kilometer
    Certificate:ISO9001
    Voltage:0.6/1 KV
    Application:overhead/ underground/ power station
    Standard:IEC,NFC33-209,BS,ASTM
    Insulation Material:XLPE
    Package:Wooden Drum
    Port:Qingdao /Shanghai / Tianjin
    Conductor Material:Aluminum

    Overview

    The overhead insulated cable accords with the standards of NFC-33-209, which primarily used for overhead service drop applications,such as:street lighting.outdoor lighting and temporary service for construction.To be used at voltages of 600v phase-to-phase or less and at at conductor temperatures not to exceed 90℃ cross-linked polyethylene(XLPE) insulated conductors.

    This is a kind of climate bearable XLPE insulated aerial cables of NF C 31-122 aluminum 1350 core, suitable for overhead power line of AC rated voltage Uo/U 0.6/1KV and below.

    losses and ultimate system economy by reducing installation,maintenance and operative cost. The cables are designed for aerial power lines and room entrance wires with AC rated voltage 1kV and below.

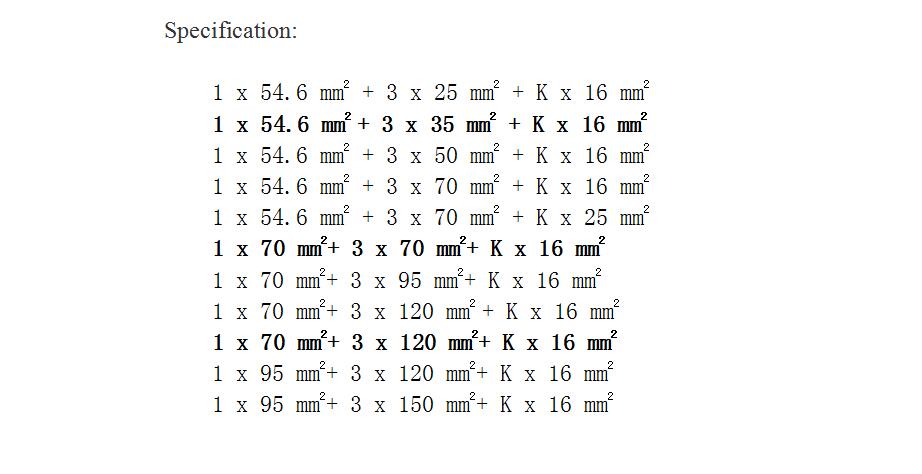

    Specification:

    1 x 54.6 mm2 + 3 x 25 mm2 + K x 16 mm2

    1 x 54.6 mm2 + 3 x 35 mm2 + K x 16 mm2

    1 x 54.6 mm2 + 3 x 50 mm2 + K x 16 mm2

    1 x 54.6 mm2 + 3 x 70 mm2 + K x 16 mm2

    1 x 54.6 mm2 + 3 x 70 mm2 + K x 25 mm2

    1 x 70 mm2+ 3 x 70 mm2+ K x 16 mm2

    1 x 70 mm2+ 3 x 95 mm2+ K x 16 mm2

    1 x 70 mm2+ 3 x 120 mm2 + K x 16 mm2

    1 x 70 mm2+ 3 x 120 mm2+ K x 16 mm2

    1 x 95 mm2+ 3 x 120 mm2+ K x 16 mm2

    1 x 95 mm2+ 3 x 150 mm2+ K x 16 mm2

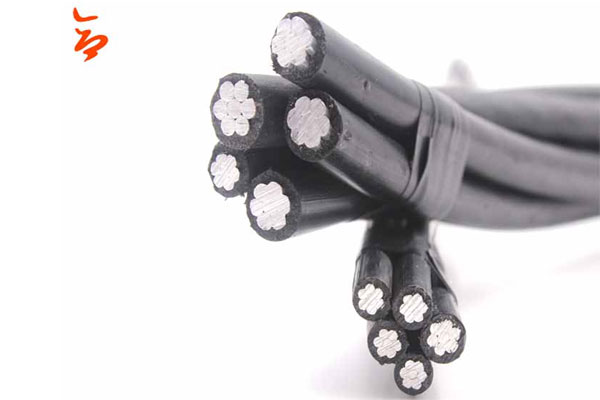

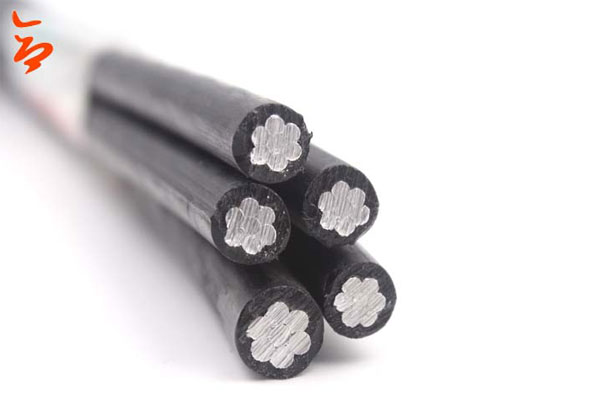

    Product Photos

    NFC33-209 1 x 54.6 mm2 + 3 x 50 mm2 + 2 x 16 mm2 ABC wire cable

    NFC33-209 1 x 54.6 mm2 + 3 x 50 mm2 + 2 x 16 mm2 ABC wire cable

    NFC33-209 1 x 54.6 mm2 + 3 x 50 mm2 + 2 x 16 mm2 ABC wire cable

  • NFC33-209 1 x 54.6 mm2 + 3 x 50 mm2 + 2 x 16 mm2 ABC wire cable parameter

  • Packing type:

    Wooden drum (fumigation) ,wooden-iron drum (fumigation) ,coil

    Cable length in each drum: 500m/1000m or as per actual cable length requirements.

    Package size:

    According to cable’s overall diameter or your requirements .

    in order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

    Loading Port:

    Qingdao,Shanghai or other ports as per your requests.

    Trade Terms:

    FOB/C&F/CIF quotation are all available

  • Quality

    1, There is a professional design engineer team, before manufacturing, all of the product drawing will be approved by CSBTS (State Bureau of Quality Technical Supervision), and then the cable could be produced only if qualified.

    2, To ensure the raw materials quality, all the copper and aluminium are special-used for cable with the Inspection Certificates. The raw material is inspected when entering factory, and only the qualified material could be put in storage and used for production.

    3, To ensure the product quality, there is a professional high level quality laboratory, most of the key technology will be checked by high precision instrument.
