Your Location: HOME > PRODUCTS > Aerial bundled cable >

High Quality 0.6/1kv XLPE Insulated ABC Cable 3*1/0AWG+1*2AWG

The quadruplex cables are suitable for use as drop cable from a pole-mounted transformer,to the service entrance of a structure,or as secondary distribution between poles.

    Application: overhead/ underground/ power station
    Voltage: 0.6/1 KV
    Conductor Material: Aluminum
    MOQ: 1 kilometer
  • Quick Details

    Place of Origin:China(Mainland), Henan
    Brand Name:Sanhe
    Model Number: 3*1/0AWG+1*2AWG ABC Cable
    MOQ:1 kilometer
    Certificate:ISO9001
    Voltage:0.6/1 KV
    Application:overhead/ underground/ power station
    Standard:IEC,NFC33-209,BS,ASTM
    Insulation Material:XLPE/PE
    Package:Wooden Drum
    Port:Qingdao /Shanghai / Tianjin
    Conductor Material:Aluminum

    Overview

    The quadruplex cables are suitable for use as drop cable from a pole-mounted transformer,to the service entrance of a structure,or as secondary distribution between poles.The cables should be limited to the voltages of 0.6/1 kv or less (phase to phase) at conductor temperatures not to exceed 75°C for polyethylene insulation conductors or 90°C for crosslinked polyethylene(XLPE) insulated conductors.

    This is a kind of climate bearable XLPE insulated aerial cables of aluminum core,aluminum conductor steel reinforced core or aluminum alloy core, suitable for overhead power line of AC rated voltage Uo/U 0.6/1KV and below.

    It is widely used in power transmission lines and electricity distribution lines, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

    Product Photos

    High Quality 0.6/1kv XLPE Insulated ABC Cable 3*1/0AWG+1*2AWG

    High Quality 0.6/1kv XLPE Insulated ABC Cable 3*1/0AWG+1*2AWG

    High Quality 0.6/1kv XLPE Insulated ABC Cable 3*1/0AWG+1*2AWG

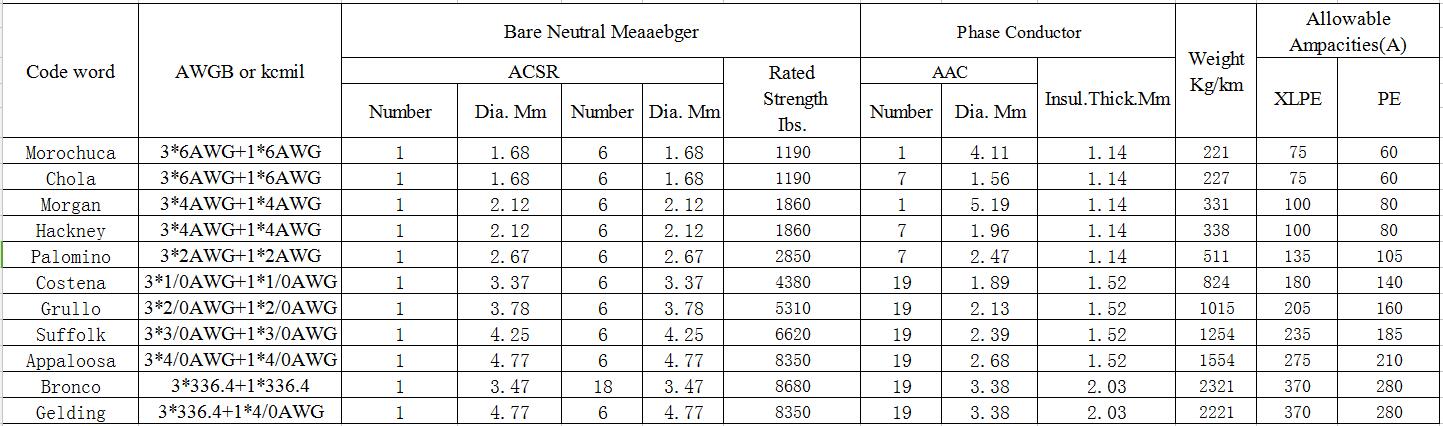

  • High Quality 0.6/1kv XLPE Insulated ABC Cable 3*1/0AWG+1*2AWG parameter

  • Packing type:

    Wooden drum (fumigation) ,wooden-iron drum (fumigation) ,coil

    Cable length in each drum: 500m/1000m or as per actual cable length requirements.

    Package size:

    According to cable’s overall diameter or your requirements .

    in order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

    Loading Port:

    Qingdao,Shanghai or other ports as per your requests.

    Trade Terms:

    FOB/C&F/CIF quotation are all available

  • Quality

    1, There is a professional design engineer team, before manufacturing, all of the product drawing will be approved by CSBTS (State Bureau of Quality Technical Supervision), and then the cable could be produced only if qualified.

    2, To ensure the raw materials quality, all the copper and aluminium are special-used for cable with the Inspection Certificates. The raw material is inspected when entering factory, and only the qualified material could be put in storage and used for production.

    3, To ensure the product quality, there is a professional high level quality laboratory, most of the key technology will be checked by high precision instrument.
