Aerial bundled cable

Low Voltage Overhead Sheathed Aluminum Wire ,pignut ABC cable.

Primarily used for overhead service applications such as street lighting, outer door lighting , and temporary service for construction. To be used at voltages of 600 V phase to phase or less and at conductor temperatures not to exceed 75ºC for Polyethylene insulated conductors or 90ºC for cross linked polyethylene (XLPE) insulated conductors .

    Application: overhead
    Voltage: low
    Conductor Material: Aluminum
    MOQ: 1 kilometer
  • Quick Details

    Place of Origin:Henan,china (mainland)
    Brand Name:sanhe
    Model Number:abc cable
    MOQ:1 kilometer
    Certificate:ISO90001
    Voltage:low
    Application:overhead
    Standard:ASTM B230-232
    Insulation Material:PE/XLPE
    Package:Coil or drum
    Port:Qingdao /Shanghai / Tianjin
    Conductor Material:Aluminum

    Overview

    Applications:

    Primarily used for overhead service applications such as street lighting, outer door lighting , and temporary service for construction. To be used at voltages of 600 V phase to phase or less and at conductor temperatures not to exceed 75ºC for Polyethylene insulated conductors  or 90ºC for cross linked polyethylene (XLPE) insulated conductors .

    Overhead insulated cable may be installed in the street with dense tree Close to the building, site of urban construction and lead to transformer. Using this cable, it is unnecessary to prune the branches, so that reduce the across and parallel distance of the cable. It is convenient to install and high mobility. It can reduce accidents of electric shock and power failure causing by circuit troubles. To guarantee supplying of electric power for industry production and resident’s safety. It is especially suitable for an old city, which has densely building, densely population and narrow streets.



    Product Photos

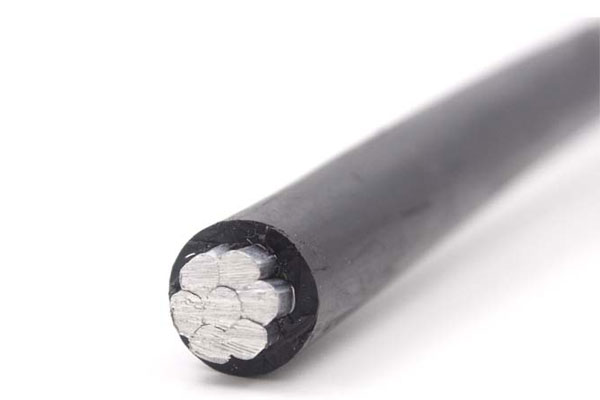

    Low Voltage Overhead Sheathed Aluminum Wire ,pignut ABC cable.

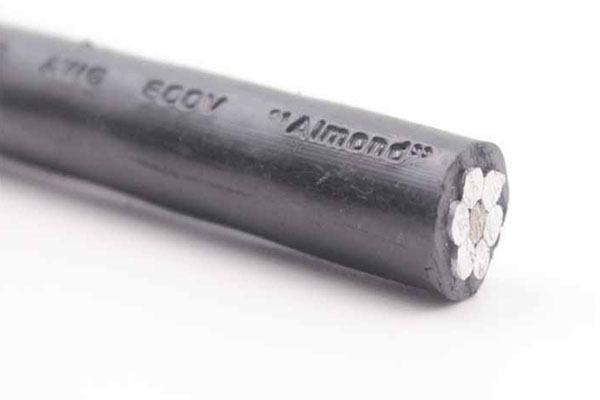

    Low Voltage Overhead Sheathed Aluminum Wire ,pignut ABC cable.

    Low Voltage Overhead Sheathed Aluminum Wire ,pignut ABC cable.

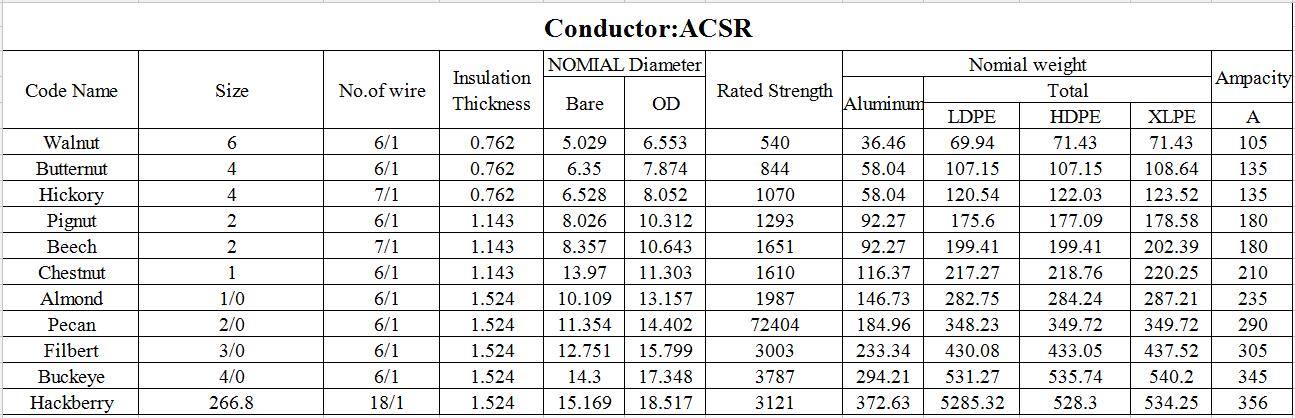

  • Low Voltage Overhead Sheathed Aluminum Wire ,pignut ABC cable. parameter

  • Packing type:

    Wooden drum (fumigation) ,wooden-iron drum (fumigation) ,coil

    Cable length in each drum: 500m/1000m or as per actual cable length requirements.

    Package size:

    According to cable’s overall diameter or your requirements .

    in order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

    Loading Port:

    Qingdao,Shanghai or other ports as per your requests.

    Trade Terms:

    FOB/C&F/CIF quotation are all available

  • Quality

    1, There is a professional design engineer team, before manufacturing, all of the product drawing will be approved by CSBTS (State Bureau of Quality Technical Supervision), and then the cable could be produced only if qualified.

    2, To ensure the raw materials quality, all the copper and aluminium are special-used for cable with the Inspection Certificates. The raw material is inspected when entering factory, and only the qualified material could be put in storage and used for production.

    3, To ensure the product quality, there is a professional high level quality laboratory, most of the key technology will be checked by high precision instrument.
