Quick Details
- Place of Origin:china
- Brand Name:sanhe
- Model Number:2.0mm2 3.5mm2 5.5mm2 8.0mm2 solar cable
- MOQ:1000maters
- Certificate:ISO IEC BS
- Voltage:LOW VOLTAGE
- Application:PV solar DC current system
- Standard:Japanese Standard
- Insulation Material:cross-linked low-smoke halogen-free flame-retardant polyolefin

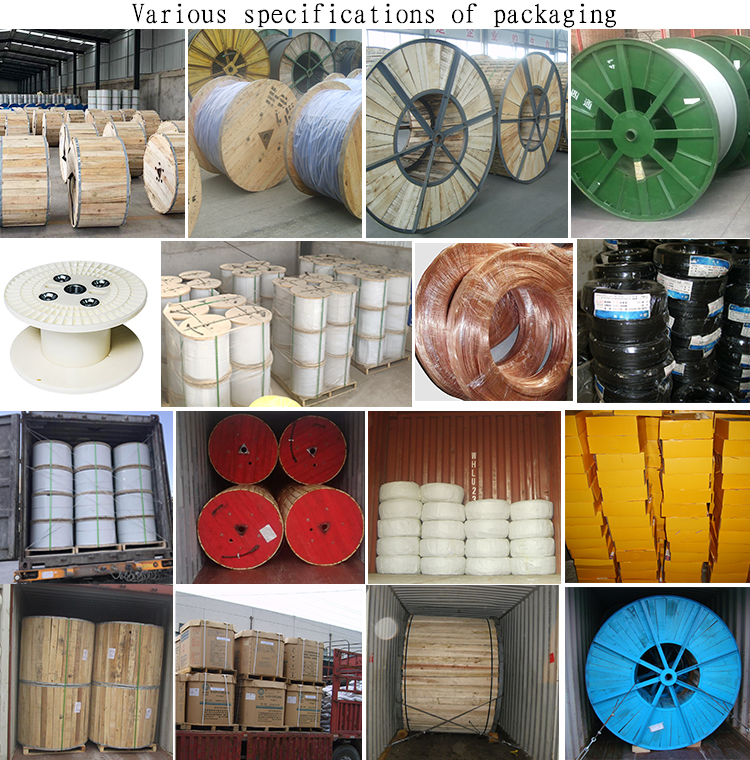

- Package:In coil
- Port:Qingdao Tianjin
- Conductor Material:aluminum
Overview
APPLICATION
Solar photovoltaic power generaltion system used for DC wirting between solar cell modules with a system voltage below 1500V DC, between solar cell modules and junction boxes, and between junction boxes and power controllers.
STRUCTURE
Conductor:bare copper conductor
Insulation: 1250C irradiation cross-linked low-smoke halogen-free flame-retardant polyolefin
Sheath: 1250C radiation cross-linked low-smoke halogen-free flame-retardant polyolefin
Color: Red or blac
TECHNICAL INDICATORS
Nominal voltage: DC 1500V
Test Voltage: AC 6.5kV /5min (200C) or DC 15kV/5min without breakdown
Conductor max. temperature: 1250C
Ambient temperature:-400C -- +900C
Expected service life: 25years
Min. bending radius: 4
1. 7*24hours online service, to ensure that we can meet your needs at any time.
2. Provide OEM and ODM services to meet your different needs.
3. More professional technicans answer any technical questions you may have.
4. Shorter production time shorten your delivery time.
5. Multiple payment terms reduce your financial pressure.
Free samples are available for further evaluation and you are highly welcome to visit our factory anytime! If you have any special requirement, pls feel free to contact with us!
